1. Product Description

The AG-2-LPG-MA2618(D) is an embedded type module equipped with the Figaro’s semiconductor Sensor TGS2618-D; It is pre-calibrated at the factory and features a filter designed to minimize interference from gases such as alcohol. This module is capable of detecting liquefied petroleum gas (LP gas), for instance, propane (C3H8). It utilizes digital communication through a UART and Alarm output interface for gas concentration readings. This allows users to easily and quickly integrate the module into LP gas detectors and alarms systems, such as Residential LP gas detectors.

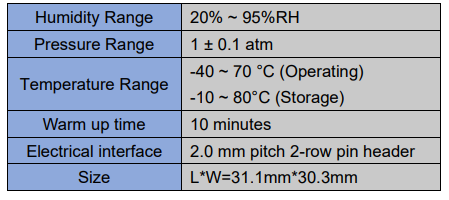

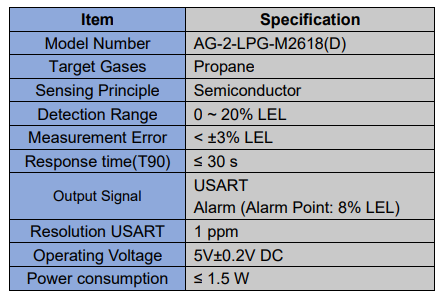

2. Technical Specification

3. Features

(1) High selectivity to LP gas

(2) Long life and low cost

(3) Alarm output

(4) USART digital output

(5) Pre-calibrated before leaving the factory
